The Data Selection for Display

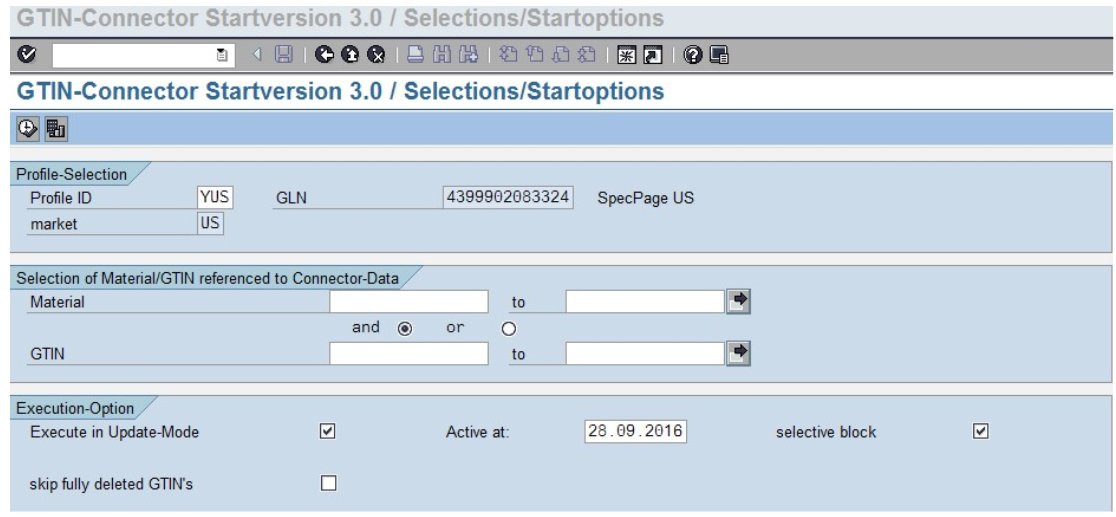

After launching the Program, you will be taken to the following selection screen:

clip0012

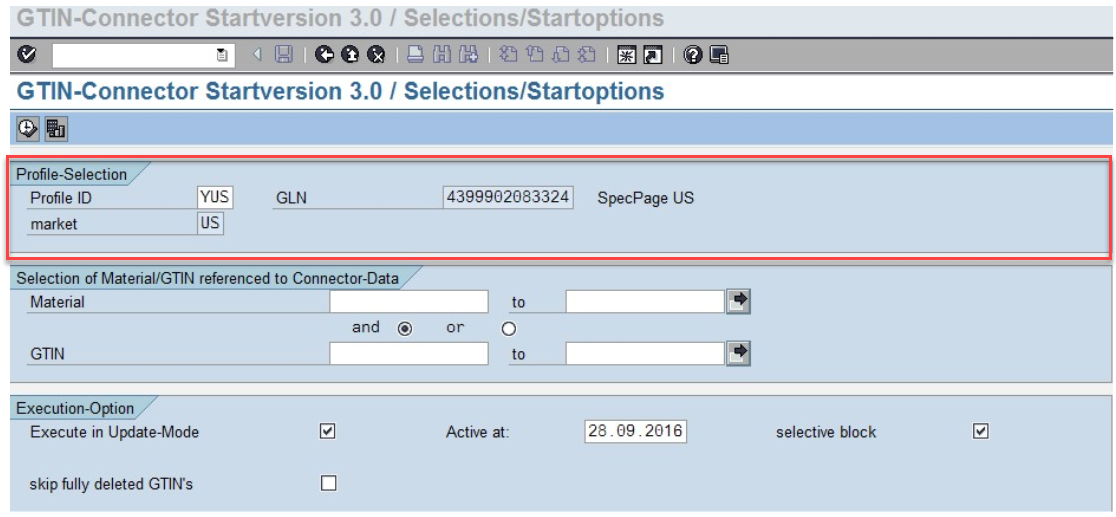

Select the appropriate profile as illustrated below:

profile slection

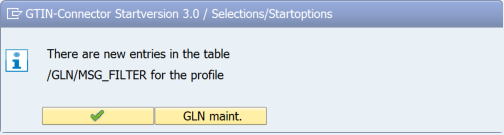

If upon the launch of a profile you receive this display, then a new distributor has sent you CIC-Messages. Now you must edit the MSG-Filter Spreadsheet in order to process the unprocessed IDOC's. For more information regarding CIC Messages, refer to the article titled MSG-Filter.

clip0007

Change the input's relevance in correspondence with the level required for the processing of the CIC of the distributor.

clip0008

0. New, undefined (trigger of notification)

1. The CIC will be inherited and affect the status (Synchronized or Review)

2. The CIC will be inherited but will not affect the status

3. Currently irrelevant

4. Currently irrelevant

9. The CIC are not subject to processing

The name of the trading partner can be inserted in this box:

clip0009

Following the status change and entry of the partner name, save the processing via button clip0010 and exit the processing via button clip0011. Subsequently, the post-processing of the IDOC will trigger the relevant distributor GLN and processed in accordance to the indicators.
