In the Ingredients tab, you can compare ingredient lists among all loaded simulation variants. This requires the source recipes have ingredients list assigned (see Declaration → Assignments for more information about assigning ingredients list to a recipe). An ingredient list is sorted by %, from highest to lowest value from all variants. The resizing of a column is remembered per user.

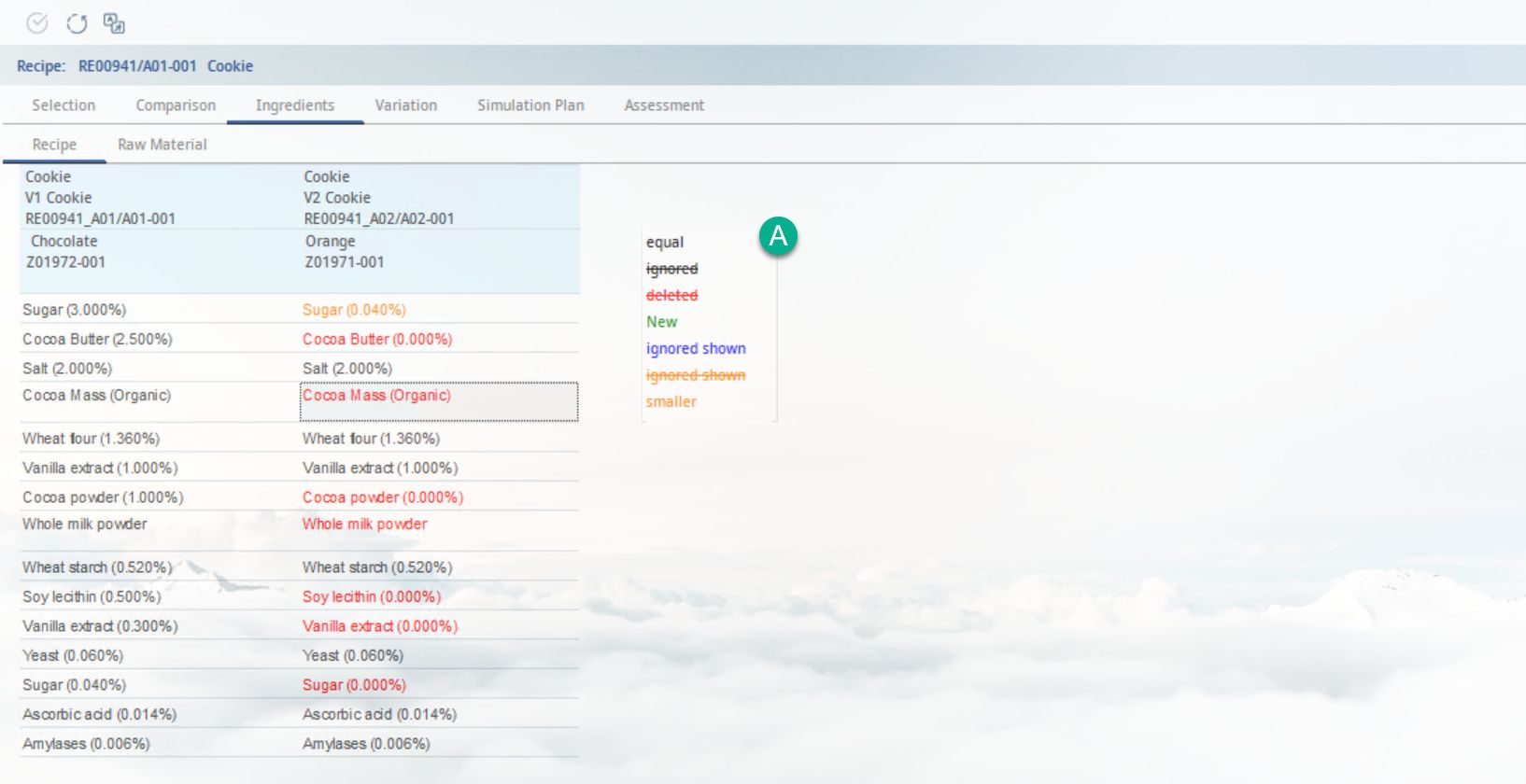

The values are always compared to the first variant and the differences are marked by different colors and font styles. To see what all the differently colored ingredients symbolize, click and hold the cursor on the header of one of the variants to display the list (labelled A).
You can further use the Simple comparison and Comparison with tolerance radio buttons to switch between the basic view and view with tolerances. The tolerances can be defined on the Master data level in Master data/Ingredients or when creating the ingredients list in Declaration → Ingredients/List ingredients.
A comparison also supports combined ingredients. They are shown under the top ingredient and their components are compared the same way as the ingredients on the top level. This works recursively for any number of combined ingredient levels.
Raw Materials

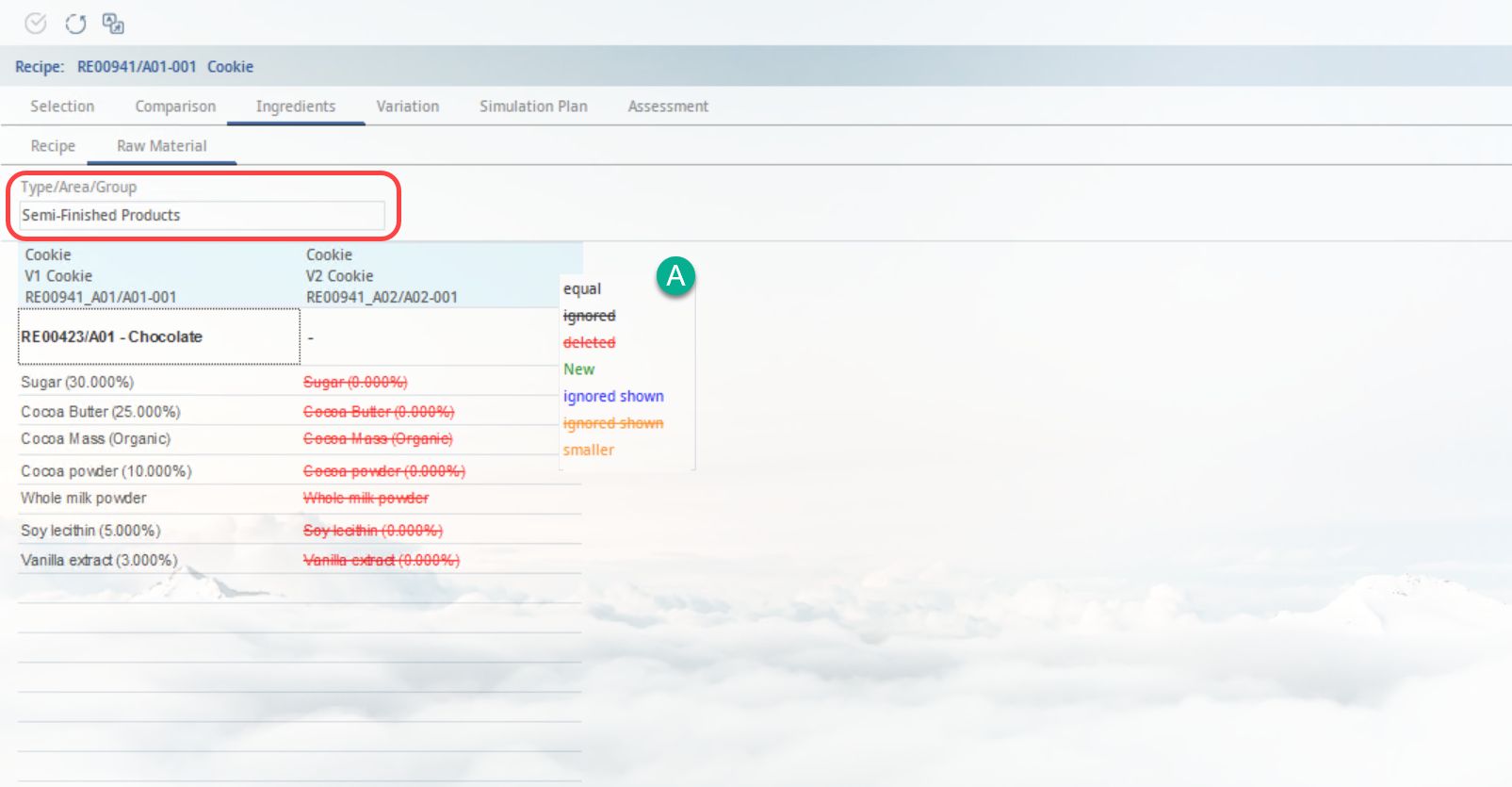

You can further filter components according to their product structure as displayed in the circle of the photo. For each type/area/group, Master data from the first simulation variant is compared to Master data from other varieties from the same type/area/group. A comparison of raw materials is shown the same way as in comparison of ingredients lists and the same highlighting rules apply (labelled A).
